There was a time, not very long ago, when short cut-off pieces of wood left over from larger projects were considered scrap destined for the burn pile or trash. But when lumber prices more than quadrupled a couple of years ago, those pieces of so-called scrap were suddenly too valuable to simply toss out. And even though lumber prices have fallen—slightly—they still haven’t reached pre-pandemic levels.

So, with that in mind, I decided to design this Shaker-inspired step stool made entirely from scrap wood. This is the first in a three-part series. Stay tuned for the other two: a wall-mounted coat rack and a hardwood cutting board. (And you can check out other scrap wood projects of ours, such as this spice rack, this bench ,and the beautiful industrial coffee table with a top made from recycled wide-plank flooring.)

The challenge of building with scrap wood is that you have to design to suit the materials you have, not materials you will buy. To do that, I rough out a design on a piece of paper or on the scrap wood itself. With the design work done, I set up my machines and get to work.

More From Popular Mechanics

preview for Popular Mechanics All Sections

Below are some tools and supplies that can help you build this. Below that is the simple play-by-play by which I built the stool.

annotated shop drawing of the stool
Popular Mechanics; George Retseck

Stool-Building Supplies


Basic Woodworking

I built this little stool with a benchtop table saw, a miter saw, a cordless drill, and a Kreg pocket screw guide. Lacking a table saw, you can build this project with a circular saw if you cut carefully enough. I would recommend a miter saw, however, for accurate crosscuts.

Crosscut the two stool sides to length, mark the notch in the pieces, and make the notch cut on the table saw. There are several important things to note about making this cut. First, you raise the blade above the workpiece by about ¼ inch and place the inside face of the workpiece against the saw table. Next, cut right up to the point of intersection where the two cut lines meet. When you flip the workpiece over, you’ll find that the saw blade has slightly overcut the intersection. But you won’t see this over-cut intersection once the step stool is assembled. The waste piece created by the notch cut should drop away. If not, finish the cut with a jig saw or a hand saw.

Also, note in the photo that the saw’s fence is adjusted so the saw blade cuts just on the waste side of the reference line.

shaker stool made by joseph truini in diy steps
Cut just to the scrap side of the line and stop the cut right at the point where the two cutlines intersect.
Henry Hung

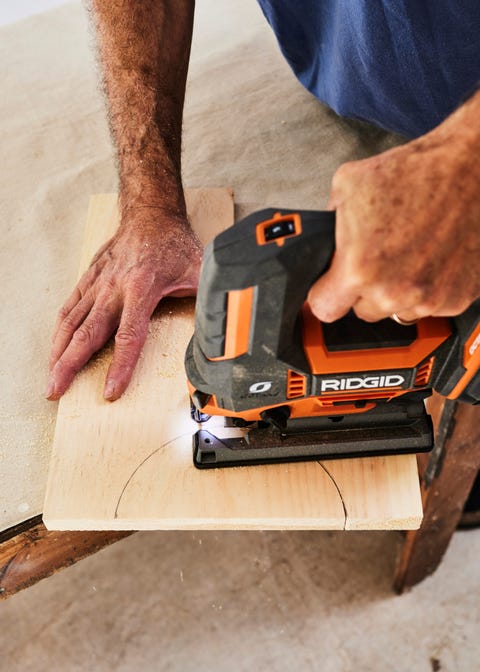

Mark the arch-shaped cut line on the outside surface (the side that will be visible when the stool is built), and use a jig saw equipped with a 10-teeth-per-inch wood-cutting blade. I use a reverse-pitch blade for these because it leaves a very clean surface on the cut edge and on the top of the wood. This blade produces little or no breakout (splintering).

shaker stool made by joseph truini in diy steps
Use a jig saw and a 10-TPI jig saw blade to cut the arch. Cut slowly; if the saw has a reciprocating action for aggressive cutting, turn that feature off.
Henry Hung

Crosscut your rails to length as shown in the drawing and bore two pocket screws at the ends of each rail. Also bore a pair of pocket screws through the back of the sides at each tread location. Now You’re ready to paint and assemble.

shaker stool made by joseph truini in diy steps

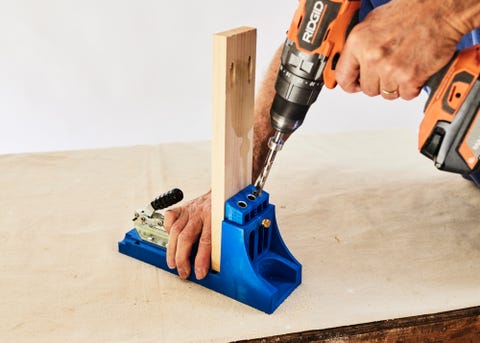

Use a Kreg pocket screw jig to make the pocket holes in the stretchers. Adjust the jig to the setting for ¾-inch stock.
Henry Hung

Painting and Assembly

Lay the parts down on a drop cloth or some masking paper and apply a coat of shellac-based primer-sealer. This primer works particularly well on pine, which may have the occasional small pocket of pitch or a small knot that will show through the paint if not sealed. Depending on temperature and humidity, the primer dries in anywhere from 15 minutes to half an hour. Sand the first coat with 220-grit sandpaper and wipe off dust with a tack cloth.

shaker stool made by joseph truini in diy steps
Put on a pair of food-handling gloves and spray some fast drying shellac-based primer-sealer on all the parts. When the primer dries, apply two latex enamel topcoats.
Henry Hung

After you wipe the parts down, topcoat them with two layers of spray paint (I used Behr Surf Spray Paint). Be careful to keep paint off the end grain of all parts, which will prevent the parts from fitting tightly together. Next, rip and crosscut the treads to the dimensions shown in the drawing and apply two coats of satin polyurethane to them. Sand the first coat with 220-grit sandpaper, wipe it down, and apply the second coat.

When both the paint and polyurethane dry, assemble the bench by driving 1¼-inch pocket screws through the stretchers into the sides. Then invert the bench and drive the pocket screws through the sides into the treads.

shaker stool made by joseph truini in diy steps
Tip the stool on its side and drive pocket screws through the rails into the sides. You can use an impact driver or a drill driver to drive these. When using an impact driver, use a light touch. The tool’s torque can easily overpower a pocket screw in pine and cause you to crack the rail.
Henry Hung
shaker stool made by joseph truini in diy steps
Invert the stool and drive pocket screws into the treads. Here, you are better off using hardwood pocket screws which have a finer thread than those screws used on softwoods, because the treads are oak. Again, proceed carefully when using an impact driver to avoid cracking.
Henry Hung

There are a couple of things to note about the assembly process. First, check the assembly for square as you work. Even though parts may be cut square, things can go out of alignment. Monitor your work as you go. Second, be sure to position the stair treads so that they have an equal amount of overhang at each end. Placing a simple tick mark on the bottom of the tread is enough to align the stool base and the tread during assembly.

And with the last pocket screw driven, there you have it. You’ve built yourself a nice little stool and converted some scrap wood from kindling to furniture. Not bad for a day’s work.
