How—and When—to Use a Cold Chisel

Pity the poor cold chisel. Misunderstood. Neglected and dull. Left to rattle around, alone, in the bottom of a tool box. People use these chisels to chip concrete and break bricks, jobs they should be doing with a masonry chisel. They also use them as pry bars and paint scrapers, two other jobs for which they are poorly suited. Eventually, the cold chisel becomes so worn from misuse and neglect that it’s discarded. “Doesn’t work anyway,” someone will say about the cast off.

The cold hard fact of a cold chisel is this: if you keep it sharp and add a drop of oil to its edge before you cut, you’ll be amazed at how well it chops metal.

As for brands you can trust, I've used Dasco, and Mayhew chisels. I haven't used Proto's tools, but I've looked at the specs for them and they have a particularly impressive (though expensive) set made from shock-resisting S-series tool and individual chisels made from other (unspecified) forms of tool steel. Both are US made, and the parabolic shape of the striking end of the chisel does create better force transfer from the hammer blow and helps resist forming a mushroom on the end of the chisel. For more on this, see the care section at the end of this article.

More From Popular Mechanics



And on that topic, as its name implies, the cold chisel is used to cut cold metal. Therein hangs a metalworking tale.

Blacksmithing 101

Looked at in the simplest terms, there are two ways to cut metal. When the metal is hot (as in, “strike while the iron is hot”) and when it’s cold. Hot metal is easier to cut, since it’s softer than cold metal. The first tools developed to cut metal were adapted from sledge hammers. Instead of having a hammer face on both sides, the head had a cutting bit on one side and a hammer face on the other.

Such a hammer developed to cut hot metal is called, appropriately, a hot cut. To cut cold metal, it’s called a cold cut.

Remove the handle from a cold cut, and you've got a cold chisel. A cutting tool formed out of tool steel with a hardness and edge profile designed to cut soft to medium-hard steel, aluminum, brass, and copper.

You may be asking, “why should I care?” We’re glad you asked. We prize mechanical literacy at Popular Mechanics. There are several good reasons to know how to use cold chisels, which we illustrate below.

Bolt cutter

A sharp cold chisel makes a handy cutter for bolts, brackets and mounting hardware, and for splitting off nuts that are frozen in place by rust.

Begin by oiling the tool.

Hold a piece of shop towel under the chisel and apply a few drops of machine oil or motor oil. Wipe the excess off the end of the cutting edge so there’s just a thin film left and you’re ready to chop.

Clamp the nut and bolt firmly in the vise. Get a firm grip on the chisel, and brace your hand on the vise. with your knuckles resting on the vise jaw and your thumb folded out of the way and resting against the body of the vise. Get the chisel edge between the threads. Give the chisel a sharp rap with a ball peen hammer.

Next, run the nut over the bolt up to the position that you want to cut it and clamp it very firmly in the vise jaws. Get the tip of the cold chisel between the threads and give the chisel a sharp blow using a ball peen hammer. This establishes the notch between the threads.

Once the cutting notch is established, reposition your hand to allow a firm grip while giving the chisel more ability to slide through as it makes the cut. With a series of deft blows from the ball peen hammer, peel off the rest of the fastener. A ¼-inch bolt will take no more that two shots from the hammer while large material may take two to three times as many. If the going gets tough, re-oil the chisel tip.

With the notch established, reposition your hand for the follow through. Grip the chisel firmly while supporting your hand on the vise jaw. Your grip should be such that the chisel is held firmly and will not bounce, yet the chisel will slide through your hand once struck. Keep your hand in position and deliver a series of sharp blows to the chisel, peeling off the rest of the fastener from the nut.

Chopping a bolt to length with a cold chisel is fast and effective, but not particularly gentle. After cutting the bolt, turn the bolt several times forward through the nut, before backinig it out. Repeat as necessary to ensure that the cut thread has reformed or “healed.” If necessary, use a dab of synthetic grease or some oil on the fastener as you work it through the nut.

Notcher

What we show above is an ideal situation, cutting parts to length as they are held in a big sturdy bench vise. That doesn’t happen often in the field. Sometimes you just have to notch a part with a cold chisel and then grip it with locking pliers or even smash it with a hammer to bend it back and forth on the notch to snap it off.

Another common notching application is to mark a cut in bar stock.

Make a starting notch in a piece of bar stock using a cold chisel. Position the bar stock on the vise’s anvil and deliver a sharp blow to the chisel. If you have several pieces of bar stock to notch, turn the vise on its swivel base so that the anvil is facing the front of the bench.

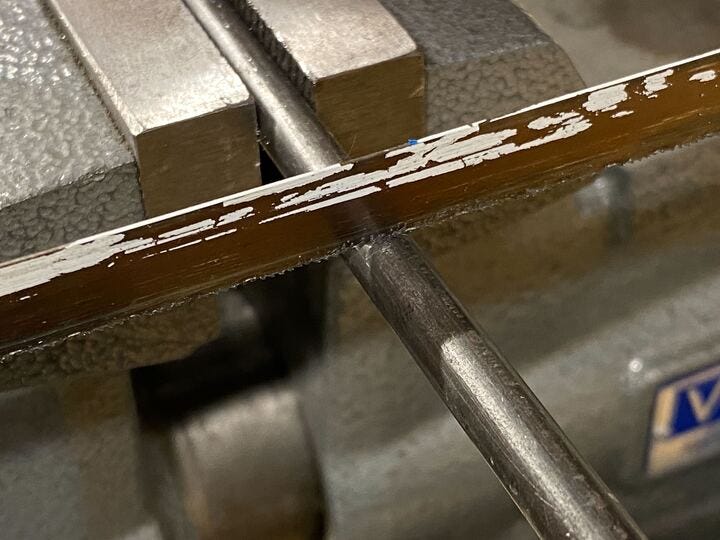

From there, cut as you would normally with a hacksaw.

Clamp the bar stock in the vise, place a drop of oil in the notch, and rest the hacksaw blade in it. Lightly push the saw forward to establish the cut.

Scriber

The three most well known ways to mark metal are a silver Sharpie, a soapstone marker or a scratch awl. Heavy duty awls are particularly handy for this. We own this stuff, it’s accumulated in our tool box over the years.

On the other hand, not many people know that a cold chisel is great for marking a cut line on metal.

Hold a workpiece to the bench, and slide a square up to the cut mark. Hold the chisel at approximately 45 degrees to the work surface and pull its corner over the metal, leaving a clean, bright line.

Sharpening and care

There’s not much to caring for a cold chisel. When it’s edge gets beat up, refresh it with a single-cut mill file. For more precise cutting (cutting bolts and threaded fasteners), hone the cold chisel on a coarse and medium oil stone or water stone. But we need to emphasize this: don’t get too carried away sharpening these things. They need to be sharp, but we’re not talking wood chisel sharpness here. A freshly filed edge is more than sufficient for all but the most unusual circumstances.

Begin by filing the chisel's edge from the back of the chisel to the front.

Clamp the chisel firmly in the center of the vise. Holding a single-cut file at an angle, stroke from the back of the file to the front, covering the entire bevel on each stroke. This should form a burr on the opposite bevel. Turn the chisel around in the vise, and repeat the procedure from the opposite side.

Now file from the front of the chisel to the back.

In the same manner that you filed before, now file from the edge of the chisel toward the back. Again, move the file at an angle over the edge and try to cover the entire width of the bevel in one stroke. Turn the chisel and repeat on the opposite bevel.

Finish the bevel by draw filing.

Hold the file along the bevel but with the file’s edge parallel to the chisel. Brace your thumbs on the back edge of the file and push forward. Cover the length of the bevel on each stroke. A couple of draw filing strokes on each bevel should produce a clean, burr-free sharp edge ready to cut metal.

Finally, if the striking end of the chisel has begun to mushroom over, file off any burred edge.

Clamp the cold chisel centered in the vise jaws with its striking end face up. Use a file (either single cut or double cut, which removes more material faster) and remove the mushroomed burr that forms on the edge of the chisel from repeated hammer blows. Don’t allow a large curled piece of metal to form on the striking end. Eventually, this will fly off from a sharp hammer blow and will fly through the air like shrapnel.
